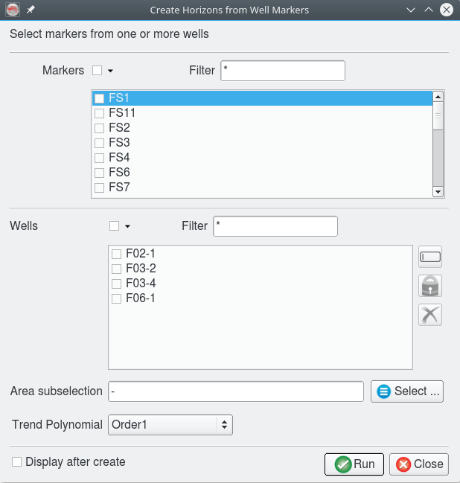

The tool is utilized for creating 3D horizons from well markers using Radial Basis Function gridding.
If need be, 2D horizons can be later derived from the 3D ones using Create from 3D option.
Selecting more than one markers will result in creating several horizons at a time. The output horizon will be saved to the database under the name Horizon From *selected marker*.
Trend Polynomial: Trend processing must be applied during gridding using Radial Basis Functions. The order of the trend removal may influence more or less the resulting 3D horizon:
The resulting output horizon depends largely on the lateral distribution of the control points (the wells). Try and choose the best parameter for the Trend Polynomial based on the most realistic result, as it is not possible to state which order will return the most reliable horizon.
