1.1.2.2 Import FaultStickSet From Petrel*

Petrel* fault interpretation can be accessed in OpendTect as FaultStickSets by clicking on PetrelDirect insert icon in the following places:

• Manage FaultStickSet window (Survey > Manage > FaultStickSets... or click on icon in the Manage Data toolbar)
• Select Input FaultStickSet(s) window when adding FaultStickSet(s) to the 3D scene, 2D viewer or Basemap by right click on FaultStickSetin the tree > Add)

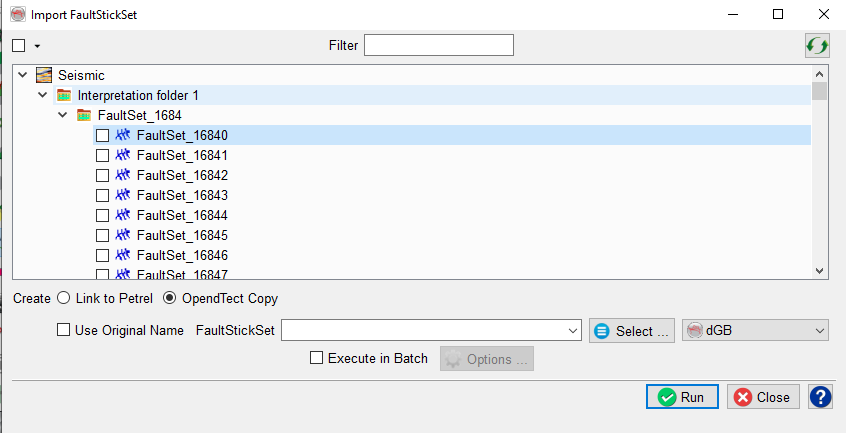

Select Fault Interpretation(s) window allows to select faults from Petrel* project and create either Link to Petrel* or OpendTect Copy.

FaultStickSet Import User Interface

FaultStickSet in OpendTect is a set of fault sticks which can be grouped into faults.

*is a mark of Schlumberger.
