1.1.2.4.3 Import 3D prestack Seismic From Petrel*

Petrel 3D Prestack seismic dataset can be accessed in OpendTect by clicking on PetrelDirect insert icon in the following places:

• Manage Prestack Data window (Survey > Manage > Seismics Prestack > 3D... or click on icon in the Manage Data toolbar)
• other workflows, including Prestack attribute definition and processing, etc.

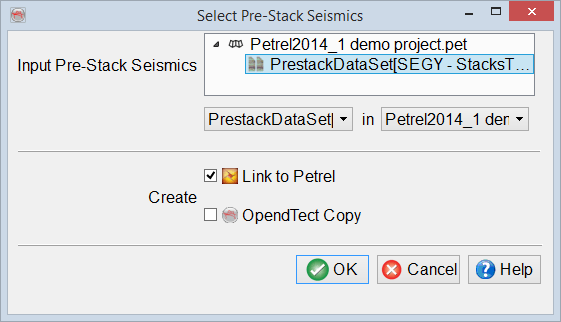

Select Prestack Seismics window allows to select 3D prestack seismic data from Petrel* project and create either Link to Petrel* or OpendTect Copy. The tree view and the drop-down menus offer alternative ways to select data from a Petrel* project.

Petrel* 3D prestack data must have compatible geometry with OpendTect survey set up. The easiest way to achieve this is to Get survey set up from Petrel* when setting up a survey and choose an appropriate Petrel* seismic survey folder as the geometry source.

*is a mark of Schlumberger.
