1.1.2.6 Import Well From Petrel*

Petrel well data (deviation survey, time-depth model, logs and well tops) can be accessed in OpendTect by clicking on PetrelDirect insert icon in the following places:

• Manage Well window (Survey > Manage > Wells... or click on icon in the Manage Data toolbar)
• Load Well(s) window when adding well(s) to the 3D scene or Basemap by right click on Wellin the tree > Add)
• other workflows, including well-to-seismic tie, Log attribute definition and processing, etc.

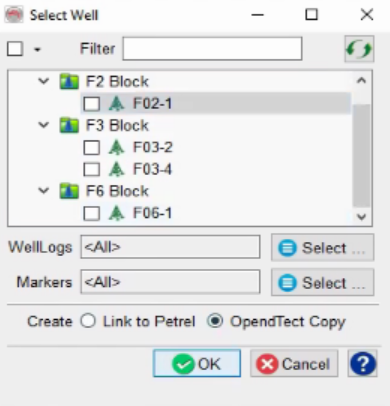

Select Well(s) window allows to select wells from Petrel* project and create either Link to Petrel* or OpendTect Copy. Active time-depth model in a Petrel* project is always used.

Import Well User Interface

Selection of well logs and markers.

• By default all well logs and markers are selected.
• To change the default within the current import session: highlight one well in the tree and click Select buttons to make a selection of well logs and markers which is automatically applied to all the wells.

Use Ctrl+A and Ctrl+Shift+A shortkeys to select/de-select all items in the list.



*is a mark of Schlumberger.
