3.4.2 Create from Existing

This option allows the user to generate random line offset from an existing random line. There is an option available to generate a random line at some distance away from existing random geometry and store it in new random line geometry.

Create Random line from existing line geometry in left/right or both directions. The direction is defined by the path described by the nodes, in the order seen in the table.

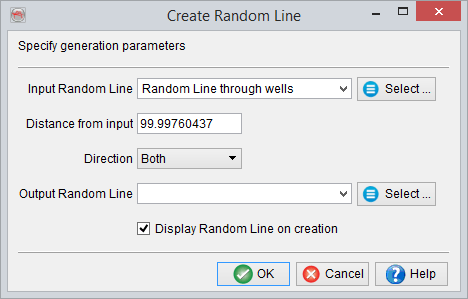

The first generation parameter is the input random line, which has to be chosen between the already existing random lines. Then, define the distance from input in meters and the direction in which the node will be added. There are three directions: left, right, and both. The final step is to name the output random line.

Click on the Display Random line on creation box to immediately visualize the random line.
