3.4.3 Create from Polygons

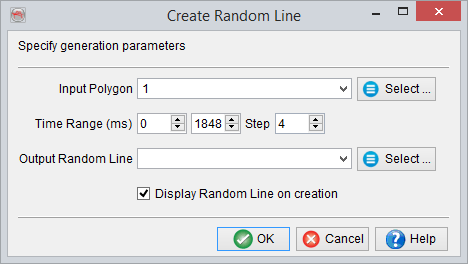

This option allows the user to create random line definition from already created polygon. In the parameters, select the existing polygon and sub-select the Z-range for the random line, which will be generated. Write an output name for this random line and optionally, set check to display random line on creation so that after creation it will be displayed in the scene/tree. Press OK to proceed.

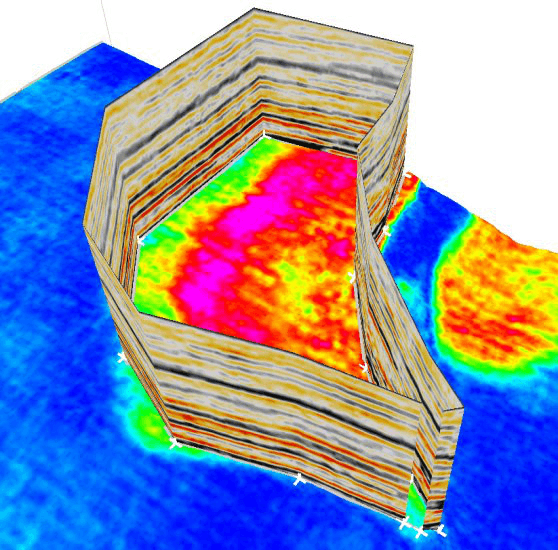

An example random-line generated along the white colored polygon. The polygon approximates the closure of a gas anomaly.
