6.1.8.1 Time-Depth Conversion

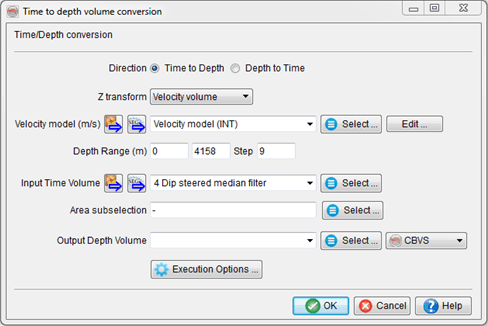

To create an time-depth converted output, follow: Processing > Create Seismic Output > Time-Depth Conversion...

Time-depth conversion is done by applying Dix's equation, based on a interval- or RMS velocity volume. A velocity model and input time volume must be provided, and the direction of the conversion has to be set.

It is also possible to convert from Depth to Time. Instead of an input Time volume, a input Depth model has to be provided.
