4.6.1 Speed vs Algorithm and Calculation Cube Size

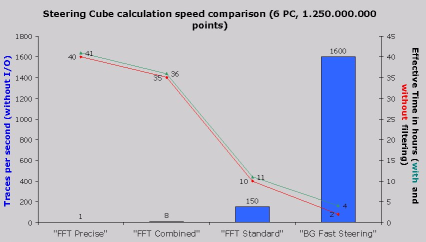

In Figure 1 the relative calculation speed is displayed for the different algorithms. The test was done on a cluster of 6 computers using distributed computing. The input cube has 817811 traces. Each trace has 1551 samples with step of 4 ms, making a total of 6200 ms. Calculation speed is measured in traces per second.

Figure 1. Comparison of relative speed of the different steering algorithms.
