4.3.15.1.1 Track

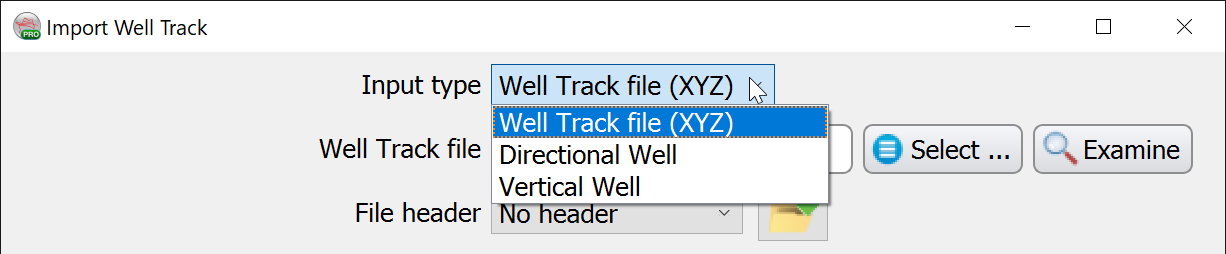

Importing Well Tracks into OpendTect via Survey > Import > Wells > ASCII > Track... can be done via these three main input types:

In time surveys, time-depth model must also be either imported using column sorted ASCII file, or temporarily defined as constant velocity at this step.

The well track is the core part of a well, it is required for the visualization of well data in depth and further loading of markers and logs. The well track determines the size of the usable and displayed well data. Any log or marker outside of the track Z range will neither be usable nor be displayed. On the other hand the well track is not limited to the survey Z range and can be loaded outside the survey box.

A time-depth model is another core piece of information which is required for visualization and use of well data in time.

For bulk import of well tracks and time-depth models please refer here and here.

Reference datums used in OpendTect are schematically shown in the figure below (note that Measured Depth [MD] is always referenced from Kelly Bushing [KB]):

For a deviated well, the file must contain 4 columns: position information (X/Y or Inl/Crl), true vertical depth sub sea (TVDSS) and MD.

For a vertical well, the file must contain at least 3 columns: position information(X/Y or Inl/Crl) and at least one depth column, TVDSS or MD (Reference Datum Elevation [KB] value must be specified in this case).

The best way to ensure that the reference datum elevation is properly set is to have the deviation survey file starting at MD = 0 and the TVDSS of KB. In the example below: KB elevation of a well is 34.1 m above MSL, i.e. in OpendTect TVDSS at KB is -34.1 m, which corresponds to MD=0.0 m:

X Y Z (TVDSS) MD
623255.98 6082586.87 -34.10 0.00
623255.98 6082586.87 0.00 34.10
623255.98 6082586.87 65.90 100
623255.84 6082591.69 440.86 475

Format definition

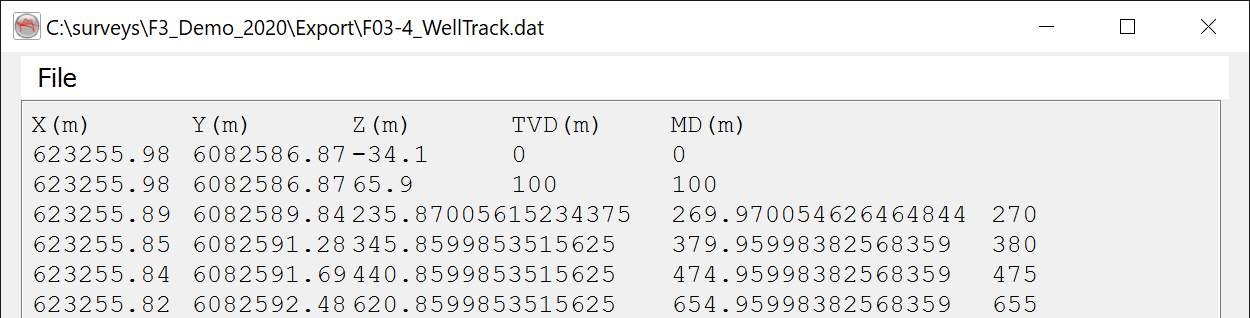

Use the Examine option to inspect the input file to ensure you set the Format Definition correctly:

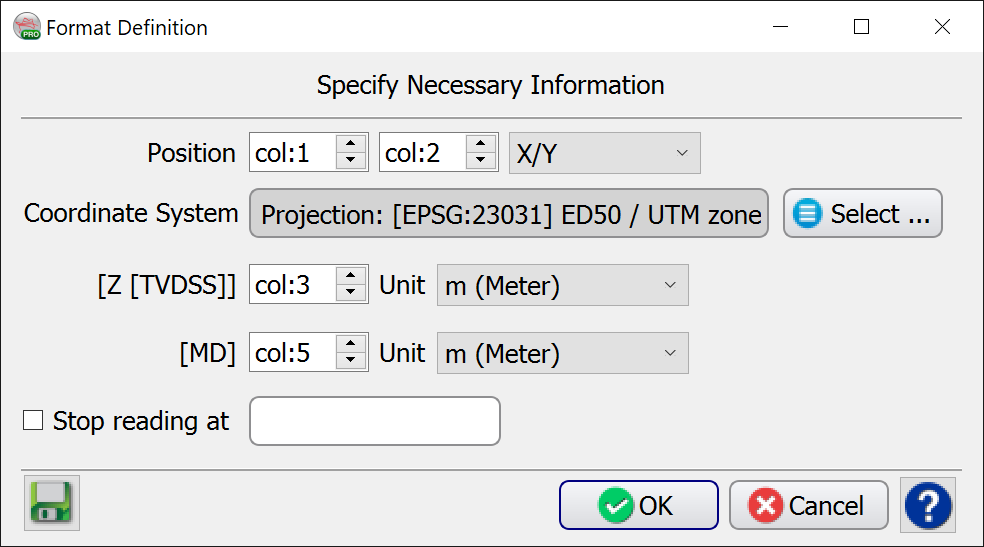

Predefined and saved file formats are available by clicking on icon. Otherwise the format must be manually specified by clicking on Define button and selecting column numbers corresponding to position information (X/Y or Inl/Crl), Z and MD. If Coordinate Reference System (CRS) is defined for the survey, CRS conversion will be available in the import window.

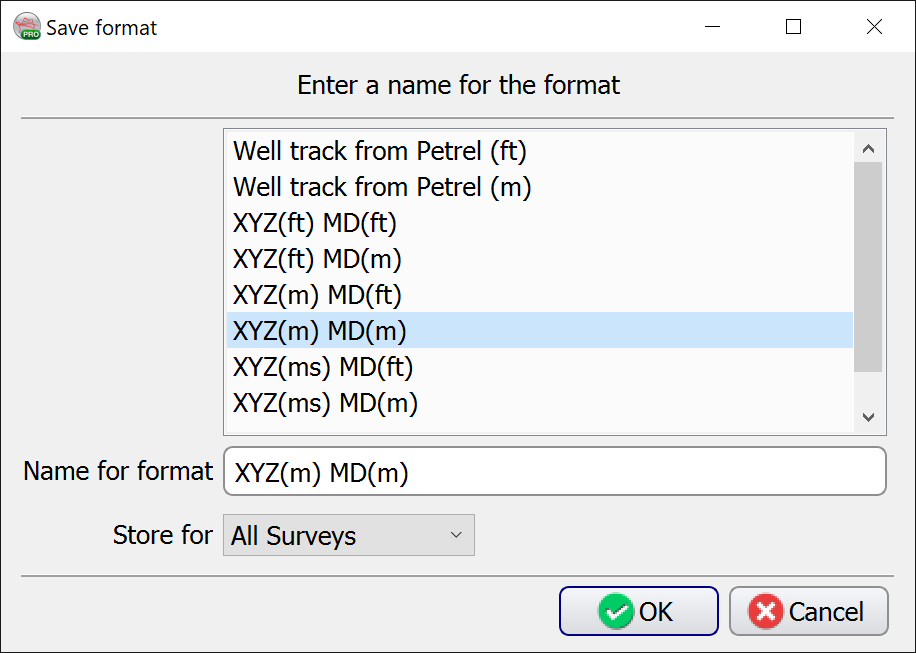

It is recommended to save the format definition for a later use and QC, by clicking on icon. The format can be stored at different levels (All surveys, This survey only, or My user ID only) depending on the usage.

Well Track File

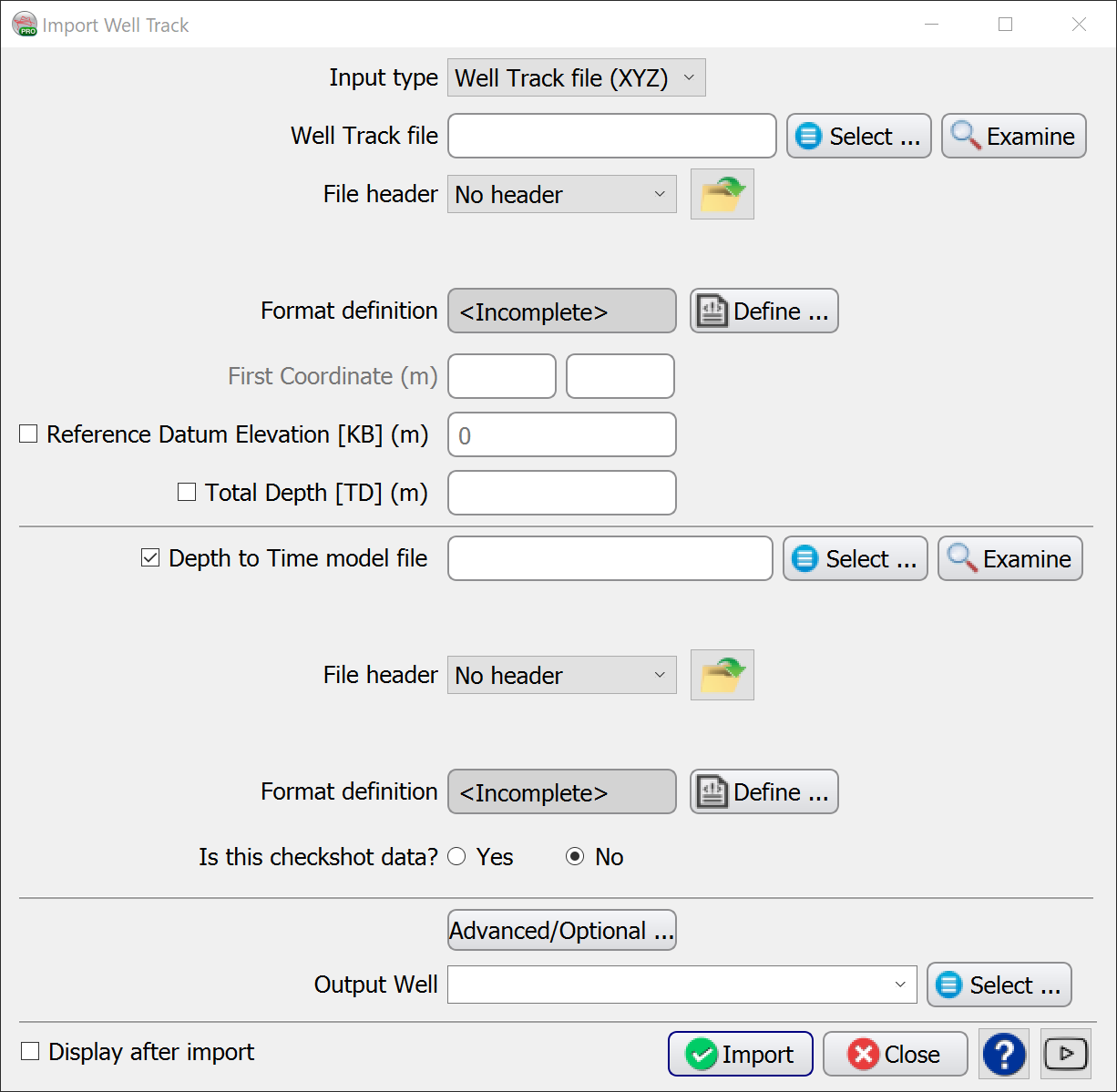

The Import Well Track window allows to select an ASCII file containing a well track, be it vertical or deviated* (see below).



Vertical well

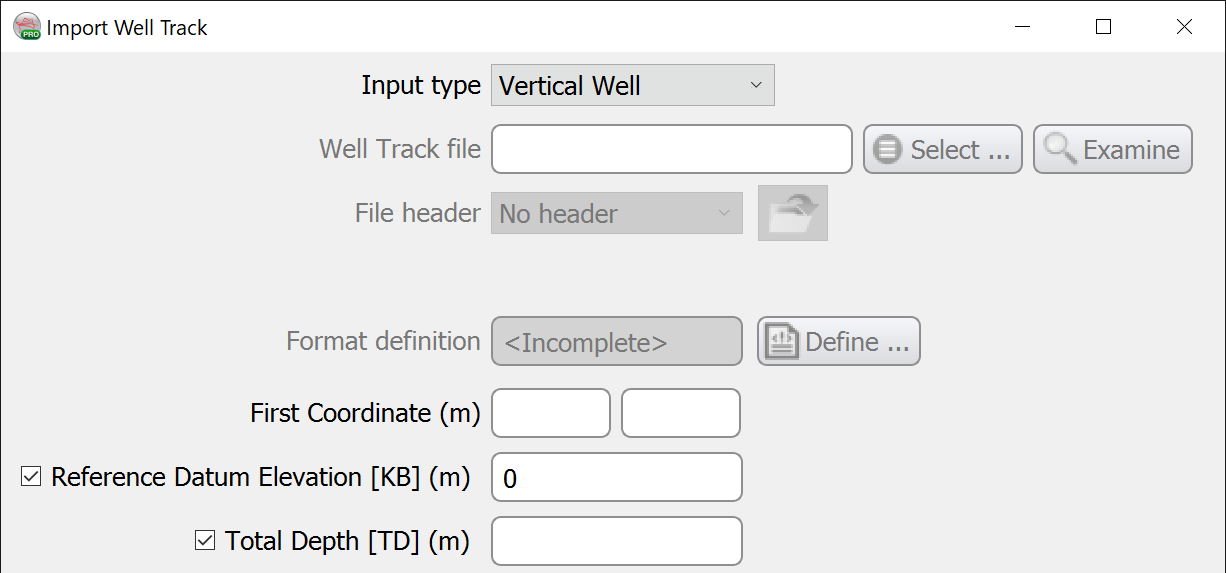

The Import Well Track window allows to create a vertical well by entering its surface coordinates, Reference Datum Elevation [KB] and Total Depth [TD].



Directional Wells (Inclination/Azimuth)

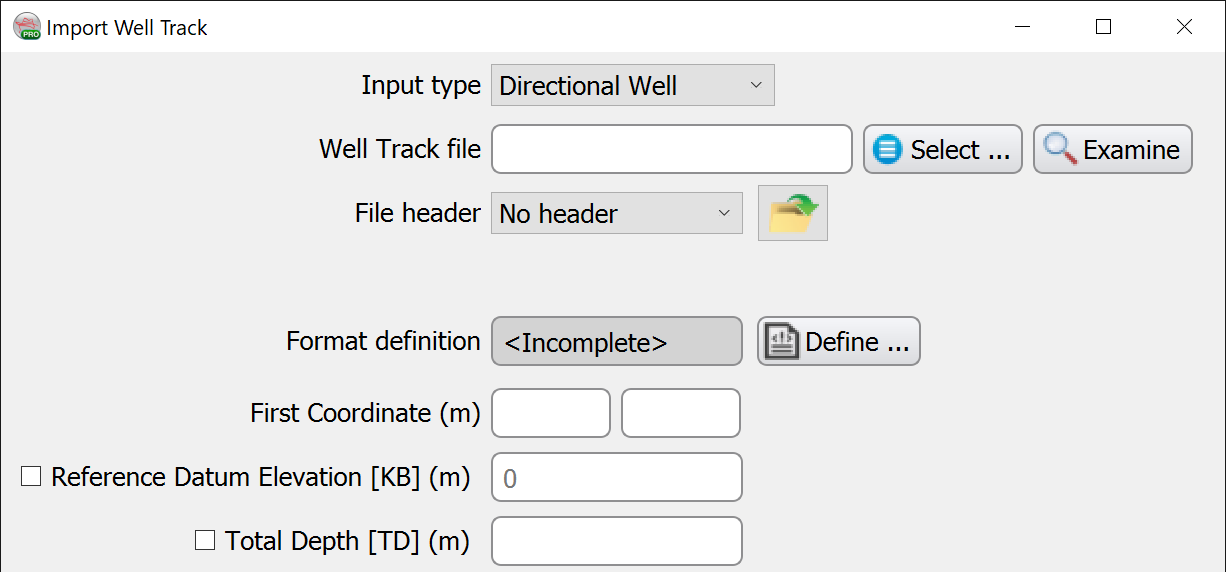

During Well import, you must select 'Directional Well' from the drop down menu 'Input Type' at the top of Import Well Track window:

This will activate the 'First Coordinate' fields where you should enter the absolute X,Y (surface location) of the well.

Then check the box 'Reference Datum Elevation [KB]' and enter the KB.

It is best to do the same for TD as well, as usually the last entry in the file is less than TD.

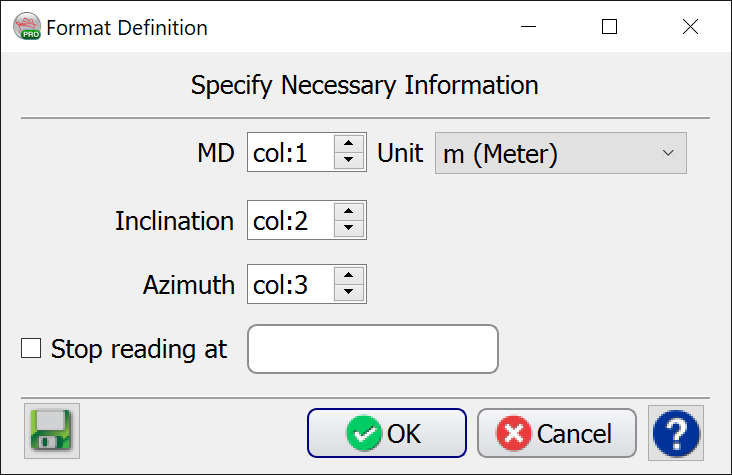

Select the Well Track file, Examine it and Define the Format. In this option the expected data is Inclination (dip) and Azimuth :

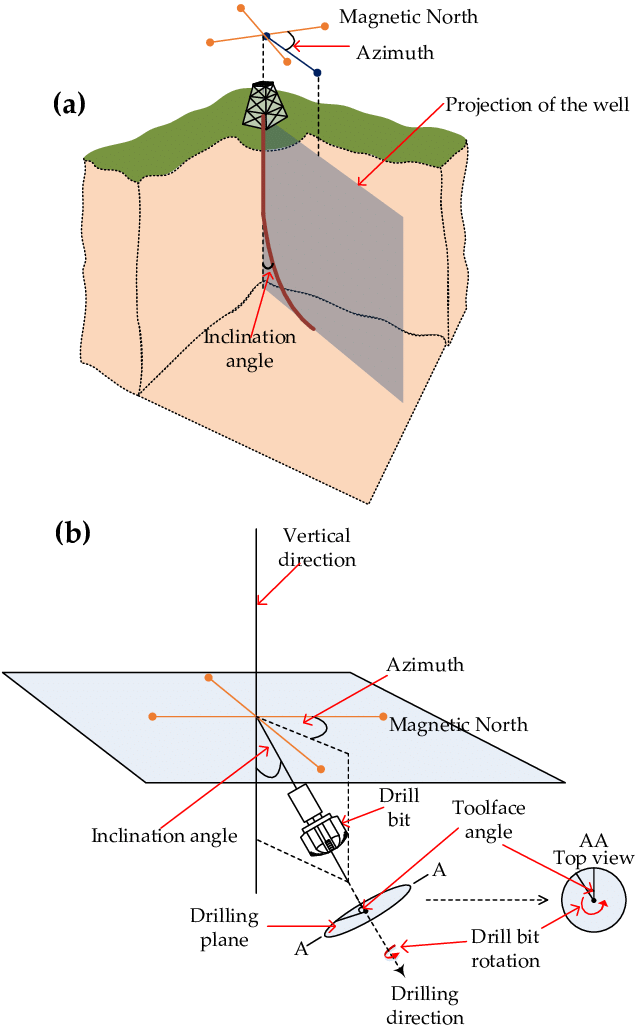

Above figure: (a) Azimuth and inclination when drilling a directional well; (b) The azimuth of a directional well is the deviation from magnetic north and the inclination is the deviation from the vertical direction of the well. (See: https://www.researchgate.net/figure/a-Azimuth-and-inclination-when-drilling-a-directional-well-b-The-azimuth-of-a_fig2_320511730)



The remaining fields in the Import Well Track window should be filled as per a standard well.

There is also an option for the import of multiple Directional Wells (Survey -> Import -> Wells -> Bulk -> Directional Wells...). For this 'Bulk' option it is necessary to first enter the locations of the wells using the ‘Well Locations’ import option.



* Deviated Wells (DX/DY)

Deviated Wells may be imported via 'Directional Well', but you may also select ‘Well Track File (XYZ)’ - both of these options support relative values.

If using the ‘Well Track File (XYZ)’ option, then you will need to use the ‘Advanced/Optional’ dialog to specify the Surface Coordinate (the equivalent of the ‘First Coordinate’ that is activated in the ‘Directional Well’ option).

It is also possible to use the option Import Well Locations - especially handy for importing or Multiple Wells.

Once you have the Well Locations in place, you may then return to the relevant Import -> Wells -> Bulk… option.



Time-Depth Model

If checked Depth to Time model file, a file containing the time-depth relation model can be provided as an ASCII file containing depth as TVDSS, TVD-SRD or MD. If time-depth model is unavailable, the check box at the left of this field can be deselected and temporary model velocity value (m/s) should be provided.

Predefined and saved formats are again available by pressing the icon. Otherwise the format must be manually specified. The Define button gives access to the format definition window.

You must specify in the format definition window the column where depths and times are located, and the type of data to be expected. Three types of depths are supported for loading a check-shot/time-depth curve from a file. The supported depths are: MD, TVDSS, TVD rel SRD. Time values can be either one-way or two-way traveltimes. Times (lines) that should not be read must all have the same numerical value, which is to be filled in as the Undefined value".

Time-depth models are always stored using measured depths and two-way travel times in seconds. Therefore any other input format will cause a conversion of the input data. Data loading can be stopped at a specific line by providing the adequate keyword.

It is mandatory that the time-depth model obeys the following requirement: TWT = 0.0 ms corresponds to TVDSS at SRD. The best way to ensure this is to have such line in the imported file. For example, if SRD is 1000.0 m above MSL, i.e. in OpendTect TVDSS at SRD is -1000.0 m, then the file should contain a line with the following TVDSS (m) - TWT (ms) pair: -1000.0 m - 0.0 ms.

It is highly recommended that the 2nd sample of the time-depth model corresponds to the start depth of your sonic log, unless the input is a measured checkshot survey.

The Time-Depth model used during import can be either a checkshot model or a "normal" time depth curve. More information can be found in the well management chapter.

Similarly the depth-time model reading settings can be saved:

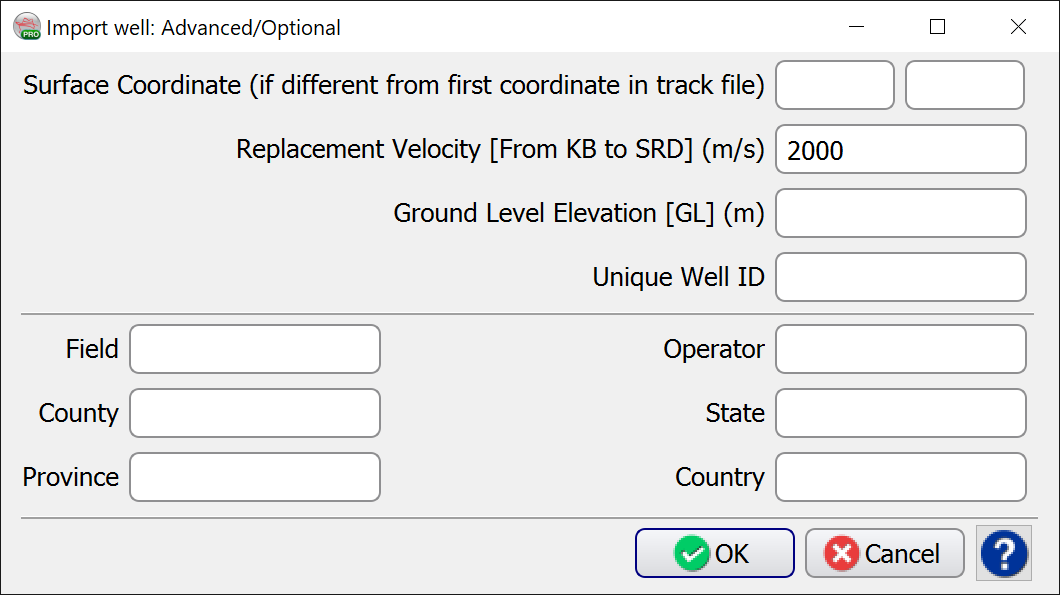

Advanced/Optional

The Advanced/Optional button allows the user to provide optional parameters.
