1.1.2.4.2 Import 3D Seismic From Petrel

You are here:

1.1.2.4.2 Import 3D Seismic From Petrel

Petrel 3D seismic cube can be accessed in OpendTect by clicking on PetrelDirect insert icon in the following places:

Manage 3D Seismics window (Survey > Manage > Seismics > 3D... or click on icon in the Manage Data toolbar)
Select window when adding a seismic attribute display at In-line/Cross-line/Z-slice/3D Horizon in the 3D scene
other workflows, including attribute definition and processing, etc.

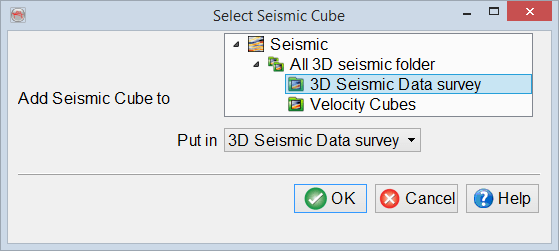

Select Seismic Cube window allows to select 3D seismic data from Petrel project and create either Link to Petrel or OpendTect Copy. The tree view and the drop-down menus offer alternative ways to select data from a Petrel project.

Petrel 3D seismic cube must have the same geometry as OpendTect survey set up. The easiest way to achieve this is to Get survey set up from Petrel when setting up a survey and choose an appropriate Petrel seismic survey folder as the geometry source.
