4.3.7.4 Bulk 3D

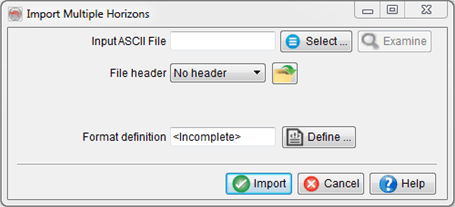

The bulk import tool allows for the import of multiple 3D horizons from one single file. The data is matched by name. This has the following implications:

The horizon name must appear on each line of the input file. The horizon name should not contain spaces, otherwise the matching with a given column number will not work as expected.

Apart from being a multiple horizon import tool, it behaves following the rules of the standard horizon import.

Format definition

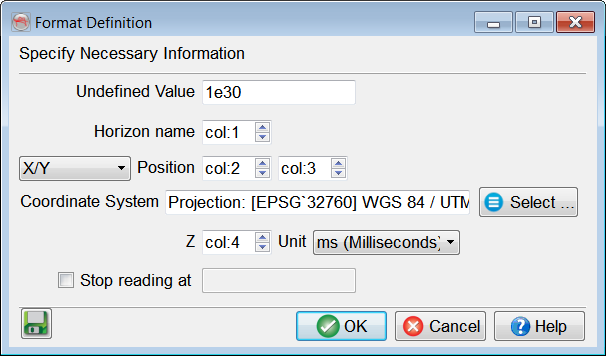

You must specify in the format definition window the column numbers for the position, in terms of an X-Y pair or an inline-crossline pair, the point column and the horizon name. If Coordinate Reference System (CRS) is defined for the survey, CRS conversion will be available in the import window.
